Systems are continuously improved. See specs below for exact details.
Description
+
Description
+
The MAX 10R 10-rib LS supercharger accessory drive system for Magnuson Magnum 2650 Supercharger applications features an extra wide 10-rib belt to drive the supercharger combined with an 8-rib accessory drive system. Max 10R drive systems handle the power and rpm of your supercharged engine -- even at 15+ PSI boost!
Important Info
+
Important Info
+
See This Important Information Before You Order
Questions on How to Order?
» Call us at 1-877-337-0688

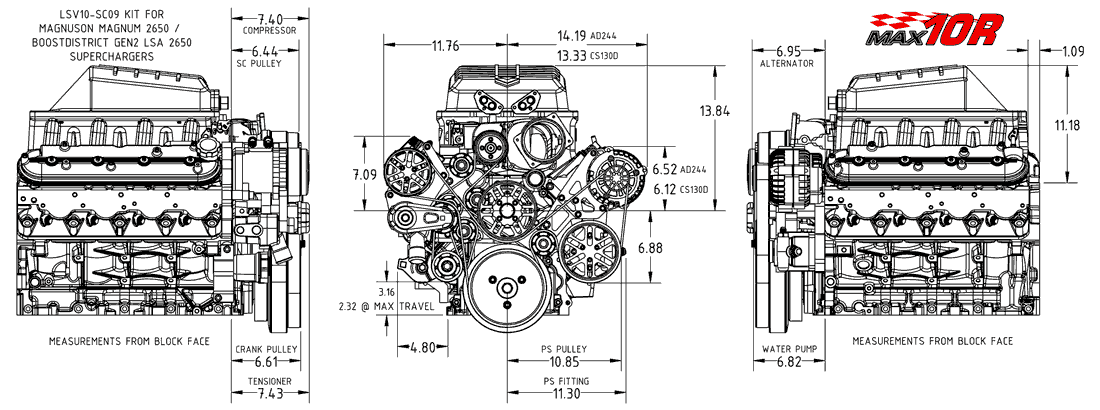

Kit Dimensions
» View the kit dimensions diagram
How to Choose an Alternator
» PDF: Important information on how to select your alternator
» HTML Webpage: Important information on how to select your alternator
Important Application Information
Details
+
Details
+
- Concept ONE makes it easy to improve the look and function of your vehicle by providing all the parts you need modernize your electrical, air conditioning and power steering systems.
- Compact Design opens up the engine compartment freeing up more room for other things. Also solves the problem of interference between classic car crossmembers and the factory LS A/C compressor.
- Complete Kit with all the standard equipment listed below, including power steering reservoir, means a perfect fit and no more endless searching and mismatched or incompatible parts.
- Easy Installation makes it perfect for do-it-yourselfers. Save that money for more hot rod parts or let your mechanic install it while you finalize your Hot Rod Power Tour plans.
- Fits non-VVT and VVT deleted Gen III and Gen IV LS style engines including LS1, LS2, LS3, LS6, LS7, LSX, L92, L99, LQ4, LQ9, LY6, L76, Vortec truck engines and more. Now is a great opportunity to experience the affordable to outrageous power and aftermarket tuning options available for these modern powerplants.
- Fits most popular throttle bodies including LS1, LS2, LS3 and cable driven in addition to high performance aftermarket brands.
Standard Equipment
+
Standard Equipment
+
- Ultra small black SD-7 compressor with 8-rib pulley and billet manifold
- Cast aluminum Edelbrock water pump
- New Lares Corp. aluminum power steering pump
- Power steering reservoir - Remote reservoir included for maximum clearance
- 165 amp black Powermaster one-wire alternator
- Fluidampr high performance SFI approved harmonic damper
- Complete bracket set for alternator, A/C compressor, power steering and supercharger idler
- Heavy duty 8/10 rib crank pulley, water pump pulley, alternator pulley, and power steering pulley
- Heavy duty 10-rib bracket, idlers, and hardware
- Supercharger pulley
- Alternator pulley cover
- Compressor nose cover
- 8-rib accessory belt
- 10-rib supercharger belt
- GM heavy duty 10-rib supercharger tensioner
- Continental heavy duty accessory tensioner
- Chrome hardware
- Billet aluminum thermostat housing
How To Choose An Alternator
Download and fill out this guide to determine your alternator requirements.
