Description
+
Description
+

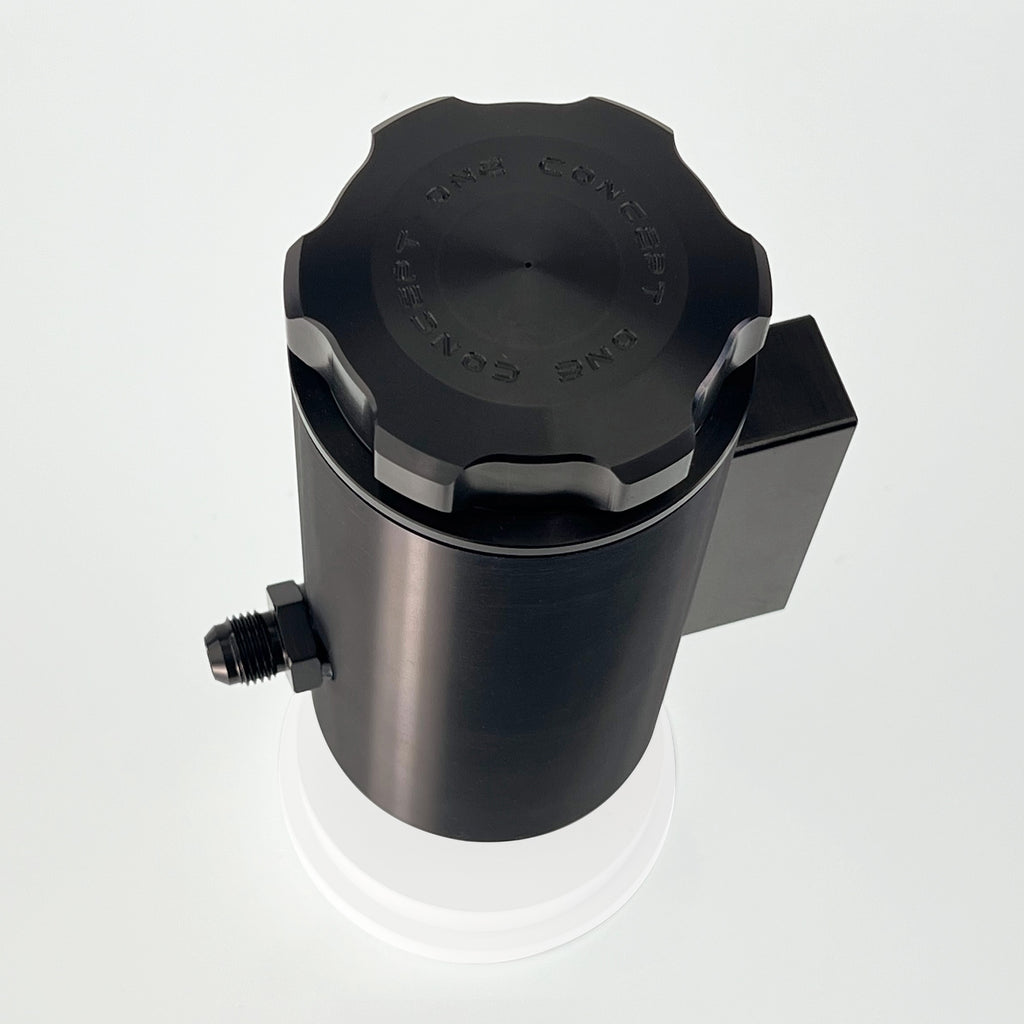

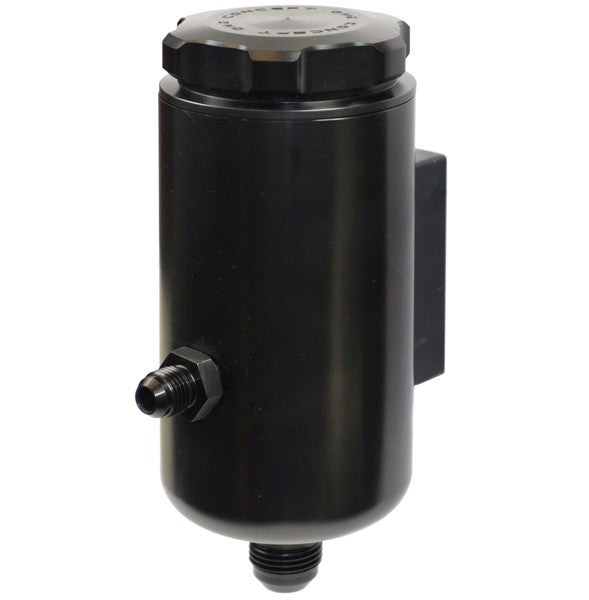

Heavy-duty power steering reservoir with a main housing carved from a single billet including the -10AN feed fitting to be virtually indestructible and leak-free. The return side features a single -6AN return fitting. Internal baffling calms the power steering fluid. This eliminates aeration, which in turn, greatly reduces noise, chatter, and fluid temperature. Available in a variety of finishes.
This power steering reservoir must be mounted higher than the power steering pump. Remote power steering reservoirs are included as standard equipment on some of our serpentine pulley kits. On any system that includes our pump-mount billet Mini Reservoir, this remote reservoir can be substituted. See individual serpentine pulley kits for details.
Return Fitting (gear/rack to reservoir): -6AN
Pump Supply Fitting (reservoir to pump): -10AN
Mounting Block: Accepts 1/4-20 hardware.
Return Fitting (gear/rack to reservoir): -6AN
Pump Supply Fitting (reservoir to pump): -10AN
Mounting Block: Accepts 1/4-20 hardware.
Details
+
Details
+
This remote power steering reservoir is available separately but is also included as standard equipment on some of our complete serpentine pulley kits. For systems that include our Mini Reservoir, this remote reservoir can be substituted. See individual serpentine kit pages for details. This remote-mount power steering reservoir is available in many finishes.
This reservoir will NOT attach directly to a power steering pump. Hoses are required to connect this power steering reservoir to your power steering pump See Power Steering Hose Kits HERE. The reservoir must be mounted higher than the power steering pump.
The included mounting block can be mounted to your vehicle's core support, firewall, or inner fender.
Pump Supply Fitting (reservoir to pump): -10AN
Mounting Block: Accepts 1/4-20 hardware.
